The History of Apple Mac Pro

Introduction

Apple’s Mac Pro is a desktop workstation engineered to withstand the demands of professional workflows in both computing performance and expandability. From its debut in 2006 to the present, it has stood at the intersection of professional users’ requirements and Apple’s design philosophy, evolving through architectural overhauls and chassis design changes.

In this report, we organize—chronologically and logically—the development background, the specifications and characteristics of each generation, and the trajectory of user reception. In each section, we highlight the key points of evolution around major elements such as CPU/GPU, memory, expandability, I/O, and chassis design.

Development Background and the First Generation (2006)

The Culmination of the Intel Transition

The plan to transition from PowerPC to Intel announced at WWDC 2005 represented a major shift that reached even Apple’s high‑end machines. As the Intel‑based flagship that would succeed the Power Mac G5, the first‑generation Mac Pro was officially announced in August 2006. It was the final piece of Apple’s Intel transition and a product that symbolized its commitment to the professional market.

Key Points of the First Mac Pro

• Chassis: An aluminum tower inherited from the Power Mac G5 (front and back mesh). Tool‑less side‑panel opening with a clear internal airflow path.
• CPU: Workstation‑class Intel Xeon (Woodcrest) in two sockets, each dual‑core (total of four cores). Standard 2.66 GHz ×2; optional 3.0 GHz ×2.
• Memory: DDR2 FB‑DIMM (ECC) 667 MHz, official maximum 16 GB. Independent FSBs (1.33 GHz) per CPU.
• Internal expansion: Four 3.5‑inch HDD bays (cable‑less trays, then‑max 500 GB ×4 = 2 TB), two optical drive bays.
• PCIe: 4 slots (one double‑width for GPUs). Full‑length card support, enabling multi‑GPU setups and multi‑display output.
• GPU: Standard GeForce 7300 GT (256 MB); BTO options ATI Radeon X1900 XT and Quadro FX 4500.
• I/O: Five USB 2.0, a total of four FireWire 400/800, dual Gigabit Ethernet, optical/analog audio.
• OS/compatibility: Mac OS X 10.4.7 (Tiger). Rosetta enabled compatibility with PowerPC apps.
  → Apple claimed up to 2× the performance of the G5 Quad, encouraging pro users to move to the new platform.

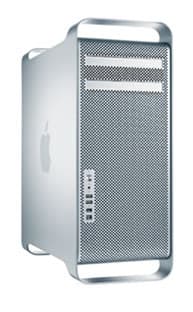

Lineup (2006–2012): Aluminum Tower

Overview

The first‑chassis era from 2006 to 2012 was praised for its robust aluminum tower and excellent internal access. Annual updates strengthened CPU generations, GPUs, and I/O while meeting professional requirements (many drives, many slots, and quiet cooling).

Early 2008 (Harpertown)

• CPU: 45 nm Xeon 5400 series. Dual quad‑core = 8 cores standard, up to 3.2 GHz.
• FSB/memory: Dual independent FSB at 1600 MHz. DDR2 FB‑DIMM 800 MHz, up to 32 GB.
• PCIe: Upgraded to 2.0. New GPUs (Radeon HD 2600 XT standard; BTO GeForce 8800 GT/Quadro FX 5600).
• Storage: Four HDD bays (assuming 1 TB each for up to 4 TB). Optional SAS/RAID support.
• I/O: USB 2.0 ×5, FireWire 400/800 ×2 each, dual GbE, optical/analog audio.
  → Marketed as “the fastest Mac of its time,” it significantly strengthened overall performance over the original.

Early 2009 (Nehalem)

• CPU: Xeon 3500/5500 (Nehalem). Newly added single‑CPU configuration (4 cores), dual‑CPU stayed at 8 cores.
• Memory: With the IMC integrated into the CPU, refreshed to DDR3 ECC 1066 MHz (triple‑channel).
• GPU: Standard GeForce GT 120 (512 MB) with Mini DisplayPort plus DVI.
• Internal: Slide‑out CPU/memory daughterboard improved serviceability.
• I/O: FireWire consolidated to 800 ×4, USB 2.0 ×5, GbE ×2.
  → A major internal architecture overhaul limited parts compatibility with previous gens, but boosted core performance and expandability.

Mid 2010 (Westmere)

• CPU: 32 nm Xeon 5600 (Westmere‑EP). Single‑socket 6‑core support led to the first 12‑core (6×2) configuration.
• GPU: Standard Radeon HD 5770 (1 GB); high‑end HD 5870 (1 GB).
• Storage: First Mac Pro to allow SSD as a system drive (up to four SSDs).
• I/O: Two Mini DisplayPorts + DVI, USB 2.0 ×5, FireWire 800 ×4, GbE ×2.
  → Multi‑core capacity and fast I/O together accelerated workflows.

Mid 2012 (Minor Update)

• Guts: Clock bumps and GPU lineup tweaks based on the 2010 model.
• Still missing: Thunderbolt/USB 3.0 remained absent even as they spread across other Macs.
  → The minimal improvements disappointed pros and amplified anxieties about Apple’s future strategy.

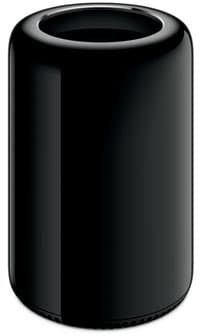

Cylindrical Model (2013–2019): The Challenge of a Unified Thermal Core

Design and Thermal Architecture

At the end of 2013, Apple executed a full model change to a compact cylindrical form. With a height of 25.1 cm, diameter of 16.7 cm, and weight around 5 kg, it employed a central heatsink and a single large‑diameter fan in a Unified Thermal Core. The chassis volume was roughly 1/8 that of the tower, and operating noise was extremely low.

Key Specifications

• CPU: Xeon E5 (Ivy Bridge‑EP), up to 12 cores (unified to one CPU socket).
• Memory: DDR3 ECC 1866 MHz, four slots, up to 64 GB.
• GPU: Dual AMD FirePro (D300/D500/D700) standard. High OpenCL GPGPU performance.
• Storage: PCIe SSD only (256 GB standard, higher BTO options). Sequential throughput over 1 GB/s.
• I/O: Thunderbolt 2 ×6, USB 3.0 ×4, GbE ×2, HDMI 1.4 ×1, headphone/optical digital.
• Expandability: No internal PCIe slots. Expansion assumed external via Thunderbolt. Optical/HDD bays removed.
  → The innovation in “performance per size” was lauded, but the lack of internal expandability and upgrade paths became a long‑term bottleneck.

Thereafter

From 2013 to 2016 there were no major updates; only a small configuration refresh arrived in 2017. In 2017, Apple acknowledged design constraints and a wrong turn, and explicitly stated it was developing a redesigned “modular” Mac Pro, recommitting to the professional market.

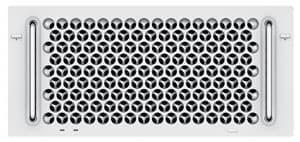

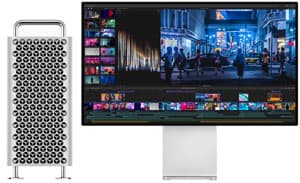

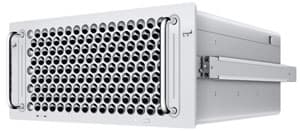

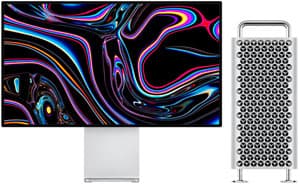

Modular Tower Chassis (2019–2023): Full Restoration of Expandability

Chassis and Serviceability

In 2019, the long‑awaited new tower arrived. The front and back mesh with a “grater” aesthetic serves massive intake/exhaust needs; inside, a stainless‑steel space frame ensures rigidity. Turning the top handle lifts off the entire outer shell, allowing 360‑degree access. Options include casters and a rack‑mount variant.

Key Specifications

• CPU: Xeon W (Cascade Lake), 8–28 cores. Cooling and ~1.4 kW‑class power designed for high‑TDP stability.
• Memory: 6‑channel DDR4 ECC, 12 slots up to 1.5 TB.
• GPU: AMD Radeon Pro. The MPX Module is a proprietary large‑form‑factor card; the chassis can host up to two MPX modules.
  • Examples: Radeon Pro 580X, Vega II, Vega II Duo (two GPUs per card).
  • With two Vega II Duo modules: 4 GPUs / 56 TFLOPS / 128 GB HBM2—a monster configuration.
• Dedicated accelerator: Optional Afterburner (FPGA) for ProRes/ProRes RAW hardware acceleration (makes multi‑stream 8K playback practical).
• PCIe: Eight total slots (six high‑bandwidth). Thunderbolt 3 integrated into MPX extends I/O onto the card itself.
• Storage: Internal NVMe SSD (BTO up to 8 TB). Traditional drives via PCIe/SATA cards or TB enclosures.
• I/O: Thunderbolt 3 up to 12 ports (chassis + MPX), USB‑A, dual 10 GbE, HDMI, 3.5 mm, and a built‑in T2 chip.
  → The complete return of internal expandability lost in the cylindrical era. It restored high‑bandwidth I/O and compatibility with a wide array of pro cards, re‑establishing a “foundation” for long‑term deployment.

Price and Reception

Even the base configuration was expensive (around the high‑¥600,000 range in Japan at launch). That said, some judged it reasonable when compared to equivalent workstations. It was widely welcomed in video/audio/scientific fields. While option prices (e.g., casters) drew headlines, professionals valued the sum of performance, acoustics, and reliability.

Apple Silicon (2023–): Coexistence of Integrated SoC and PCIe

Adoption of M2 Ultra and the Design Philosophy

The Apple silicon transition announced in 2020 concluded with the Mac Pro refresh in June 2023. The exterior was the same as 2019, but the internals were completely redesigned for M2 Ultra.

• SoC: 24‑core CPU (P16 + E8), up to 76‑core GPU, 32‑core Neural Engine, 800 GB/s memory bandwidth.
• Unified memory: Up to 192 GB (shared between CPU and GPU). This transcends the traditional “GPU‑only VRAM” model and shines on huge workloads.
• Media/security: ProRes hardware processing leaps; integrated capability equivalent to multiple Afterburners.
  → Apple touted up to ~3× CPU performance versus the 28‑core 2019 Xeon machine, with a dramatic improvement in performance per watt.

Expansion and I/O

• PCIe: Seven total slots (six free). Six are Gen4, one Gen3 for standard I/O.
  • External GPUs (eGPU) and discrete GPU add‑ins are not supported (by Apple silicon design). PCIe use cases primarily include audio DSP, video I/O, networking, and storage expansion.
• Ports: Thunderbolt 4 (USB4) ×8 (six rear, two top), USB‑A ×3, HDMI 2.1 ×2, dual 10 GbE, and a high‑impedance‑ready 3.5 mm jack.
  Updated to Wi‑Fi 6E / Bluetooth 5.3.
• Storage: Two Apple SSD modules installed internally; post‑purchase SSD kits allow capacity upgrades/replacements (e.g., 512 GB → 8 TB).
• OS/compatibility: Boot Camp not supported. Rosetta 2 offers high compatibility for x86 apps.
  → A unique pro system that combines Apple silicon efficiency with in‑chassis PCIe in the 2019 lineage.

A Debate Sparked by Comparison with Mac Studio

Since Mac Studio can also be configured with M2 Ultra at a much lower price, many see the use cases as limited to pros who truly need internal PCIe cards.
Conversely, for studios that want multiple dedicated I/O cards or ultra‑low‑latency DSP “in‑chassis,” or that need to run many TB4 and dual 10 GbE connections concurrently and continuously, the Mac Pro’s value remains clear.

Trajectory of User Reception

• 2006–2008 (early towers): High marks for the balance of performance, acoustics, and expandability. Rosetta‑enabled migration of PowerPC assets helped.
• 2009–2010 (Nehalem/Westmere): While compatibility with older parts thinned due to internal changes, the performance uplift outweighed the cost; the 12‑core impressed the market.
• 2012 (status‑quo update): Lacking Thunderbolt/USB 3.0. Concerns of “Apple neglecting pros” erupted.
• 2013 (cylinder): Compactness, quiet operation, and dual GPUs were praised. But no internal expandability became a long‑term grievance. In 2017 Apple publicly pivoted.
• 2019 (new tower): “Back to basics + super expandability” garnered near‑universal acclaim. Price was debated, but the comprehensive value for professional work won support.
• 2023 (Apple silicon): Performance and efficiency were praised. No dGPU/eGPU support and SoC‑fixed memory (max 192 GB) reflect deliberate trade‑offs. Mac Studio is recommended for those who don’t need PCIe.

List of Main Models, Release Years, and Features (Key Summary)

• Mac Pro (2006)
  First generation completing the Intel transition. Dual dual‑core Xeons (4 cores), FB‑DIMM up to 16 GB, four HDD bays, two optical bays, PCIe ×4. Standard GPU GeForce 7300 GT.
  Marketed as up to 2× the G5 Quad.

• Mac Pro (Early 2008)
  Harpertown. 8 cores standard, 1600 MHz FSB, up to 32 GB, PCIe 2.0, SAS/RAID option. Broad latest‑GPU support.

• Mac Pro (Early 2009)
  Nehalem. Two lines: single 4‑core and dual 8‑core. DDR3 1066 (triple‑channel), Mini DisplayPort, FireWire 800 ×4. Serviceability improved with daughterboard.

• Mac Pro (Mid 2010)
  Westmere. Up to 12 cores, standard Radeon HD 5770, SSD option. I/O similar to 2009.

• Mac Pro (Mid 2012)
  Minor refresh of the 2010 model. No Thunderbolt/USB 3.0, which drew criticism.

• Mac Pro (Late 2013)
  Cylindrical. Xeon E5 (up to 12 cores), dual FirePro GPUs, PCIe SSD, TB2 ×6.
  The all‑external expansion philosophy polarized opinions.

• Mac Pro (2019)
  Modular tower. Xeon W (8–28 cores), up to 1.5 TB RAM, PCIe ×8 / MPX, TB3 up to 12, dual 10 GbE, Afterburner.
  Fully restored internal expandability and serviceability.

• Mac Pro (2023)
  M2 Ultra. 24‑core CPU / up to 76‑core GPU, unified memory 192 GB, PCIe ×7 (six Gen4), TB4 ×8, HDMI 2.1 ×2, dual 10 GbE.
  No dGPU/eGPU support. Market positioning vs. Mac Studio is a key talking point.

Evolutionary Points by Technical Topic

• CPU: PowerPC → Intel (Woodcrest → Harpertown → Nehalem → Westmere) → Apple silicon (M‑series).
  Cores progressed 4 → 8 → 12 → 28 → (many efficient cores via SoC integration).
• Memory: FB‑DIMM (max 16–32 GB) → DDR3 ECC (higher bandwidth) → DDR4 ECC (up to 1.5 TB) → unified memory (up to 192 GB, 800 GB/s).
• GPU: Multi PCIe dGPUs → Cylinder’s fixed dual GPUs → 2019’s MPX with up to four GPUs → 2023’s integrated GPU (no dGPU).
• Expandability: Tower (PCIe/HDD/optical) → Cylinder (no internal; TB external) → Modular revival (PCIe ×8) → Apple silicon + PCIe (no dGPU by design).
• I/O: USB 2.0/FireWire → MiniDP → Thunderbolt 2 → Thunderbolt 3 → Thunderbolt 4 (USB4), 10 GbE, HDMI 2.1.
• Acoustics/thermals: Multi‑fan G5 lineage → Cylinder’s single‑fan unified core → 2019’s large triple‑fan with airflow management → M2 Ultra’s efficiency‑driven cooling headroom.

Summary

The trajectory of the Mac Pro is, in essence, a sustained search for balance between “expandability” and “advancement.”

• 2006: Inheriting the Power Mac’s context, it emerged as the symbol of Intel‑ization.
• 2013: In pursuit of compactness, quietness, and efficiency, Apple made a bold pivot to a cylinder predicated on external expansion.
• 2019: Responding to professional feedback, Apple restored modular expandability.
• 2023: With Apple silicon, it embodies SoC‑era efficiency while maintaining in‑chassis PCIe—a distinctive answer for pros.

As of 2025, the Mac Pro (2023) is the top of the line after the Apple silicon transition, positioned as a specialized high‑end machine for use cases that truly require internal PCIe. Amid ongoing tectonic shifts in workloads—cloud/distributed computing, AI acceleration, ultra‑high‑resolution media processing—the question remains whether the Mac Pro can continue to offer the optimal tool for professionals. Its future path will continue to be drawn at the intersection of Apple’s design philosophy and the demands of the professional market.
